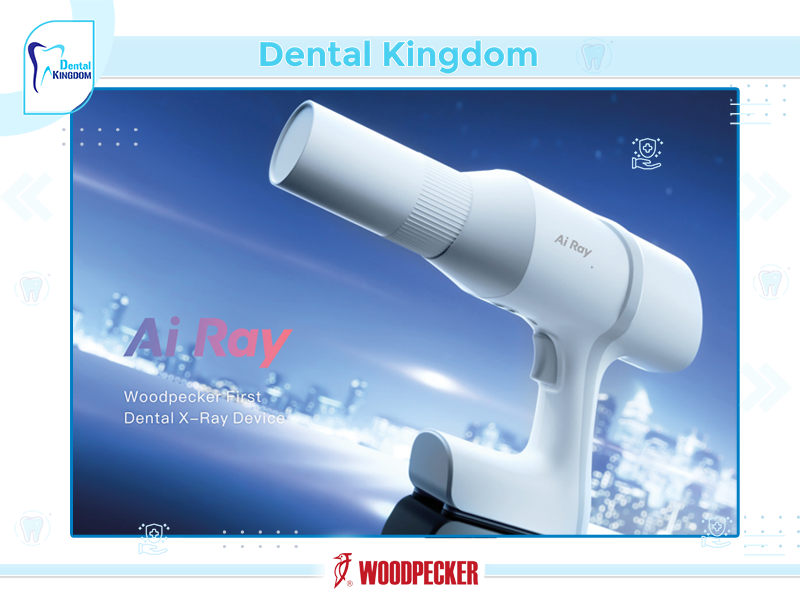

Dental X-ray device Ai-ray

NEW Woodpecker Ai Ray Dental Portable X-Ray Machine Imported High Frequency Tube


Purely imported Japan Canon high-frequency X-ray tube:
Refined tube manufacturing process
Ensure X-ray output stability and quality
Guarantee safe photographing

SUPER HIGH PERFORMANCE HIGH EFFICIENCY
Emission power up to 210W
Shorter exposure time with high power
Achieve stable, accurate and quick photography of different tooth positions

DETAILED DENTALFILMS MORE RELIABLE
0.4mm focus X-ray tube
Provide high-quality and clearer image for various diagnostic needs

HIGH-CAPACITY BATTERY LONGER ENDURANCE
15000mAh high-capacity power lithium battery delivers a longer endurance.
More than 1,500 dental films can be taken under a full charge

MAXIMUM EFFICIENCY AND SAFETY
Constant DC high frequency and voltage current output
Ensure that X-ray output is not affected by battery voltage fluctuations
Unique internal design and lead shield
Efficiently minimize the X-ray leakage
Maximize the protection of operators from ionizing radiation

FEATURES:

• 2.8-INCH CAPACITIVE TOUCH SCREEN
•VARIOUSE PHOTOGRAPHIC METHODS EASY TO OPERATE

•ANGLE CORRECTION
•COMFORTABLE HOLD


Primary Technical Parameters:
Power adapter input: ～ 100-240V 50/60Hz 1.5A

Internal power supply: DC 10.8V

X-ray tube

a) X-ray tube model: D-045;

b) Focal spot: 0.4mm;

c) Target angle: 12.5°;

d) Total filtration: 1.5mmAl/70 kV;

e) Additional filtration: 0.5mmAl/70 kV
